| 產品名稱： | Fluke 5141 5142 和 5144 molbox RFM 氣體流量校準套件 |
|---|---|
| 產品型號： | Fluke 5141 5142 和 5144 |
| 產品品牌： | 美國 - 福祿克 |
| 產品特色： | ?Flow ranges cover from 1 sccm to 50 slm ?±0.5% of reading total one-year accuracy ?Measures mass and volume flow with user settable reference pressure and temperature conditions |

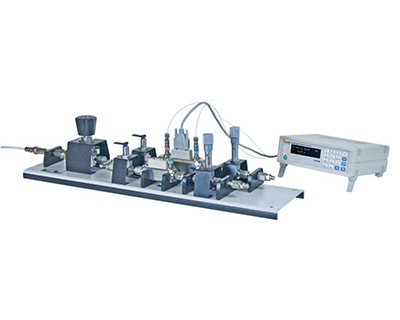

Fluke 5141 5142和5144 molbox RFM 氣體流量校準套件
氣體流量標準
福祿克計量校準部提供了用于校準流量測量儀表的 molbloc/molbox 氣體流量校準系統和對應極大流量范圍的控制器。這些系統快速、精準、易于運輸，并且可是使用 COMPASS for Flow 軟件實現完全自動化。作為測量系統的核心，molbloc 具有穩定的機械性、經過重量測量校準的層流和音速噴嘴標準模塊。
High end gas flow calibration made simple
Fluke Calibration 5141, 5142 and 5144 molbox RFM gas flow calibrator kits feature molbox RFM and molbloc-L configurations optimized to cover a very wide workload combined with molstic-L and other interconnect hardware needed for a complete calibration system. Simply supply 90 psi of pure N2 or air to the system. An included regulator delivers a stable regulated flow to the molbloc. Downstream of the molbloc, an included metering valve allows you to regulate the mass flow value required for the DUT. It’s that simple; supply 90 psi gas upstream, tare the reading, and adjust the fine metering valve to deliver the desired mass flow rate with an accuracy of ±0.5% of reading. Fluke Calibration gas flow calibrator kits eliminate complication, but don’t compromise molbox/molbloc best in class performance.
?Flow ranges cover from 1 sccm to 50 slm
?±0.5% of reading total one-year accuracy
?Measures mass and volume flow with user settable reference pressure and temperature conditions
?Reference standard is upstream of the device under test, eliminating cross contamination and expensive damage to the flow elements
?Integrated gas flow regulation and adjustment hardware
?Expandable to over 5000 slm with additional molbloc flow elements and control hardware
?Includes traceable calibration for operation in N2 and Air, with corrections for other gases
?Gas supply and test adapters included for 1/4 in tube, 1/4 in NPT and 1/4 in BSP
?Includes advanced functions such as totalize, average, hi/lo, deviation, on-board purge, leak test and tare, available from the front control panel or by RS-232 and IEEE-488 remote interfaces
A new standard in high end gas flow calibration
Fluke Calibration revolutionized high end gas flow calibration with the introduction of molbox/ molbloc mass flow standards. molbox/molbloc systems have replaced large, inflexible, error prone volumetric piston provers and bell provers with a compact, easy to use, versatile digital standard. molbox/molbloc systems are the standard of choice for high end calibration labs and mass flow device manufacturers around the world. Improvements offered by molbox/molbloc include:
?True mass flow calibration and traceability—no corrections from volumetric to mass
?Real-time digital mass flow indication, loaded with features—easily automated
?No moving parts—uninterrupted gas flow measurement, no fluctuations from piston stroke
?Flexibility to be positioned upstream or downstream—can calibrate at many line pressures
?Modular components allows future upgrade and expansion
?Very wide range with small footprint—no flow straightening hardware required
Whether your requirement is manual calibration of a simple variable area flow meter (rotameter) or fully automated calibration of a mass flow controller (MFC), molbox/molbloc systems offer the ideal solution. A molbox RFM with one or more molbloc flow elements can cover a wide range of flow calibration devices with total one-year measurement uncertainty of ±0.5% of reading. If your needs change, molbloc flow elements can be added, with models covering flows from 1 sccm to over 5000 slm (175 scfm). If better measurement uncertainty is needed, the same flow elements can be used with molbox1+ to achieve accuracy as good as ±0.125% of reading.
Measurement specifications | |
Gas calibration included | Nitrogen (N2), Air |
Maximum working measurement line pressure | 600kPa (87psi) absolute |
Measurement range | <1sccm to 50slm, depending on model. Flow ranges depend on test gas. Ranged indicated for N2 and Air. |
General specifications | |
Power requirements | 85Vac～264Vac, 47Hz～440Hz, 18 VA max consumption |
Normal operating temperature range | 15°C～30°C (59°F～86°F) |
Storage temperature range | -20°C～70°C (-4°F～158°F) |
Vibration | Meets MIL-T-28800D |
molbox RFM weight and dimwnsions | 2.55kg (5.6lb) max，8cmx22.5cmx20cm (3.1inx8.9inx7.9in) approx |
molstic with molbloc weight and dimensions(max) | 9kg (20lb)，19cmx81.28cmx15.25cm (7.5inx32inx6in) approx |
Supply gas required | 99.998% pure N2 or Air regulated to 90psig (600kPa) Note: a fine pressure regulator is included, but an additional regulator (not included) may be required to reduce pressure supplied to the 514X kit to approximately 90 psi |
Gas calculations reported | Nitrogen(N2), Air, Argon(Ar), Carbon Monoxide(CO), Helium(He), Oxygen(O2),Carbon Dioxide(CO2), Carbon Tetrafluoride(CF4), Ethane(C2H6),Ethylene(C2H4), Fluoroform(CHF3), Hexafluoroethane(C2F6), Hydrogen(H2),Methane (CH4),Nitrous Oxide(N2O), Propane(C3H8), Sulfur Hexafluoride(SF6) |
Flow connections for gas supply and device under test | 1/4 in tube with adapters included for 1/4 in NOT and 1/4 in BSP |
型號 | 描述 |
5141-100 | molbox RFM, molbloc 5E1-L 10 to 100 sccm 包括： ?molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual ?molbloc 5E1-L laminar flow element ?molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L ?Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male |
5141-1K | molbox RFM, molbloc 5E2-L 100 to 1,000 sccm 包括： ?molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual ?molbloc 5E2-L laminar flow element ?molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L ?Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male |
5141-10K | molbox RFM, molbloc 5E3-L 1 to 10 slm 包括： ?molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual ?molbloc 5E3-L laminar flow element ?molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L ?Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male |
5141-50K | molbox RFM, molbloc 3E4-L 5 to 50 slm 包括： ?molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual ?molbloc 3E4-L laminar flow element ?molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L ?Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male |
5142-1K | molbox RFM-M, molbloc 5E2-L 10 to 1,000 sccm 包括： ?molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual ?molbloc 5E2-L laminar flow element ?molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L ?Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male |
5142-10K | molbox RFM-M, molbloc 5E3-L 0.1 to 10 slm 包括： ?molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual ?molbloc 5E3-L laminar flow element ?molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L ?Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male |
5142-50K | molbox RFM-M, molbloc 3E4-L 0.5 to 50 slm 包括： ?molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual ?molbloc 3E4-L laminar flow element ?molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L ?Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male |
5144-50K | molbox RFM-M, molblocs 5E2-L and 3E4-L10 sccm to 50 slm 包括： ?molbox RFM (5141 kits) or molbox RFM-M (5142 and 5144 kits) reference flow monitor with quick connect molbloc pressure lines, molbloc communication cable, line cord and user manual ?molbloc 5E2-L and 3E4-L laminar flow elements ?molstic-L mounting system, with fine pressure regulator and an isolation valve and precise flow metering valve for each molbloc-L ?Tubing and adaptors to connect gas supply and device under test, including 1/4 in tube fitting, 1/4 in NPT female, 1/4 in NPT male, 1/8 in NPT male and 1/4 in BSP male |
