| 產品名稱： | 參考壓力監測器 Fluke RPM4 BA100K |
|---|---|
| 產品型號： | Fluke RPM4 BA100K |
| 產品品牌： | 美國 - 福祿克 |
| 產品特色： | · Transfer standard level measurement uncertainty, ± 0.01% of reading (± 0.008% for dual channel mode) · Single channel or dual channel with parallel measurementmode to reduce uncertainty and increase reliability · Large, easy to read display · RS232 and IEEE-488 interfaces included |

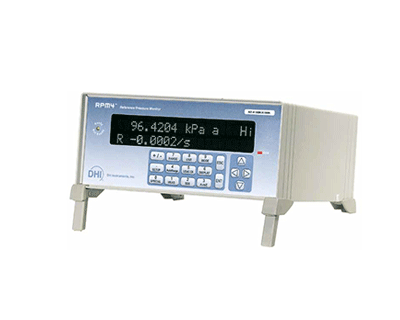

Fluke RPM4 BA100K 參考壓力監測器
The RPM4 BA100K is a full function laboratory quality barometer intended to measure atmospheric pressure with the very highest performance. Its outstanding pressure measurement specifications are made possible by DHI's exclusive quartz reference pressure transducer (Q-RPT) modules.
· Transfer standard level measurement uncertainty, ± 0.01% of reading (± 0.008% for dual channel mode)
· Single channel or dual channel with parallel measurementmode to reduce uncertainty and increase reliability
· Large, easy to read display
· RS232 and IEEE-488 interfaces included
· On-board functions including adjustable average time, high/low, deviation from set point, rate, freeze
· A2LA accredited calibration included at no extra cost, internationally recognized through ILAC, APLAC, EA and IAAC
· Ideal for absolute pressure AutoZeroing of pressure transfer standards and molbox flow terminals
· Compact and rugged presentation
· Optional battery pack
· 1 week delivery from factory
技術指標
RPM4 BA100K (Single Channel) | RPM4 BA100K/BA100K (Dual Channel) | |
Range | 70kPa～110kPa (10psia～16psia) | |
Power requirements | 85Vac～264Vac, 50/60Hz; 12Vdc, 1.2A (battery) | |
Weight | 5kg (11 lb) | |
Dimensions (H x W x D) | 10cm x 22.7cm x 24cm (3.9 in. x 8.9 in. x 9.5 in.) | |
Test port connections | 1/8in NPT F | |
Communications ports | RS232 (COM1, COM2), IEEE-488.2 Resolution To 1ppm, user adjustable To 1ppm, user | |
Resolution | To 1ppm, user adjustable | |
Operating temperature | 15°C～35°C (59°F～95°F) | |
Warm up time | 30 minute temperature stabilization recommended from cold power up | |
Vibration | Meets MIL-T-28800D | |
Predicted Stability 1 | ± 0.005% of reading | ± 0.0032% of reading |
Precision 2 | ± 0.008% of reading | ± 0.006% of reading |
Measurement Uncertainty 3 | ± 0.01% of reading | ± 0.008% of reading |
1、Predicted Q-RPT measurement stability limit (k=2) over one year assuming regular use of AutoZero function. AutoZero is performed by the operator by comparison with a barometric reference in absol mode. Absolute mode predicted one year stability without AutoZ is: Single Channel ± (5Pa + 0.005% of reading), D Channel ± (4Pa + 0.0032% of reading). 2、Combined linearity, hysteresis, repeatability. 3、Maximum deviation of the Q-RPT indication from the true value of applied spressure including precision, predicted one year stability limit, temperature effect and calibration uncertainty, combined and expanded (k=2) following the ISO “Guide to the Expression of Uncertainty in Measurement.” | ||
型號和配件
型號 | 描述 |
Fluke RPM4 mhhhac/mlllac | 參考壓力監測器 位置：mhhhac 指示高位 Q-RPT的名稱。C指示Q-RT 類別（s 對應標準，p 對應高級） 請參閱可用Q-RPT 的功能下方的Q-RPT 和范圍表。 |
RPM4 04 | -1 美版設備，-2 SI 版設備 |
RPM4 05 | CE 標志 |
RPM4 06 | 特別校準 |
RPM4 07 | 專用測試液，高位 Q-RPT（特殊液體） |
RPM4 08 | 專用測試液，低位 Q-RPT（特殊液體） |
RPM4 09 | -1 特殊配置，空氣數據（僅限于 A160K/A160K、A350K/A160K） |
配件 | 描述 |
電池組/充電器 | 12V 直流電電池，帶充電器 |
機架安裝套件 | 標準 19in 機架安裝工具機架 |
腳踏開關 | 遠程 [ENTER] 腳踏開關（部件號 3070940） |
MPC1-3000 | 手動操作的氣壓控制器，壓力量程從真空到 20 MPa (3,000 psi) |
MPC1-1000 | 手動操作的氣壓控制器，壓力量程真空可達到 7 MPa (1,000 psi) |
GPC1-16000 / GPC1-10000 | 手動氣壓控制器 |
MPG1-200M 402122 | 手動液壓發生器/控制器，200MPa（30,000psi） |
MPG2-H | 高壓液體調節器，最高至200MPa（30,000psi） |
OPG1-30000 | 液壓壓力發生器 包括：癸二酸酯（合成油）、用于連接到 PG7302 或 RPM4 的外管/適配器以及操作和維護手冊。 |
PK-7000-PPC/MPC | 互聯套件 - 將 PG7102 連接至 PPC 或 MPC 壓力控制器和被測設備。 |
